Name: Fujikura 100S Fusion Splicer
Brand: Fujikura

Fujikura

100S Fusion Splicer

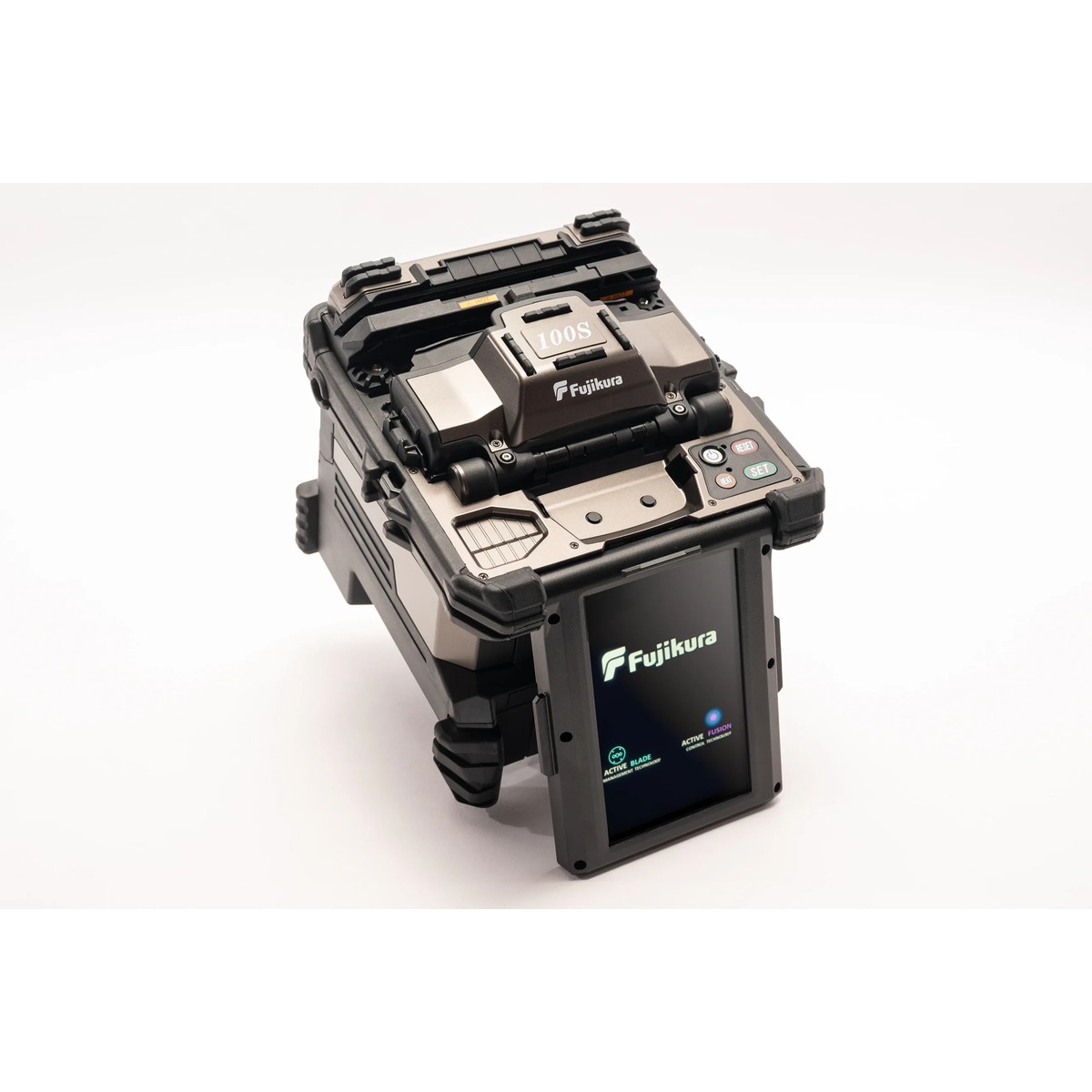

The Fujikura 100S is a single-fibre active core alignment fusion splicer built around faster field workflow and stable low-loss splicing. It combines a dual fibre preparation concept, Active Fusion Control, Active Blade Management, customizable automation, and rugged field-ready construction for engineers handling demanding installation and maintenance work.

Fibre Alignment Method	Active core alignment
Spliceable Fibre Count	Single-fibre
Fibre Type	Single-mode and multi-mode optical fibre
Display	4.95-inch TFT colour touch screen
Wireless Connectivity	Bluetooth® 5.2 LE
Battery Capacity	Approx. 300 splice and heat cycles
Key Technologies	Active Fusion Control, Active Blade Management
PC Interface	USB-C with power delivery

Get Quote View Datasheet

Ready to source Fujikura 100S

Send the quantity, destination country, and required accessories. We can help confirm commercial availability, matching tools, and recommended configuration for your project.

• Product selection support• Quantity and lead-time confirmation• Accessory matching advice• Export delivery assistance

Email Sales Compare Other Models

Dual preparation workflowDesigned to speed stripping, cleaving, and fibre loading in real field conditions.

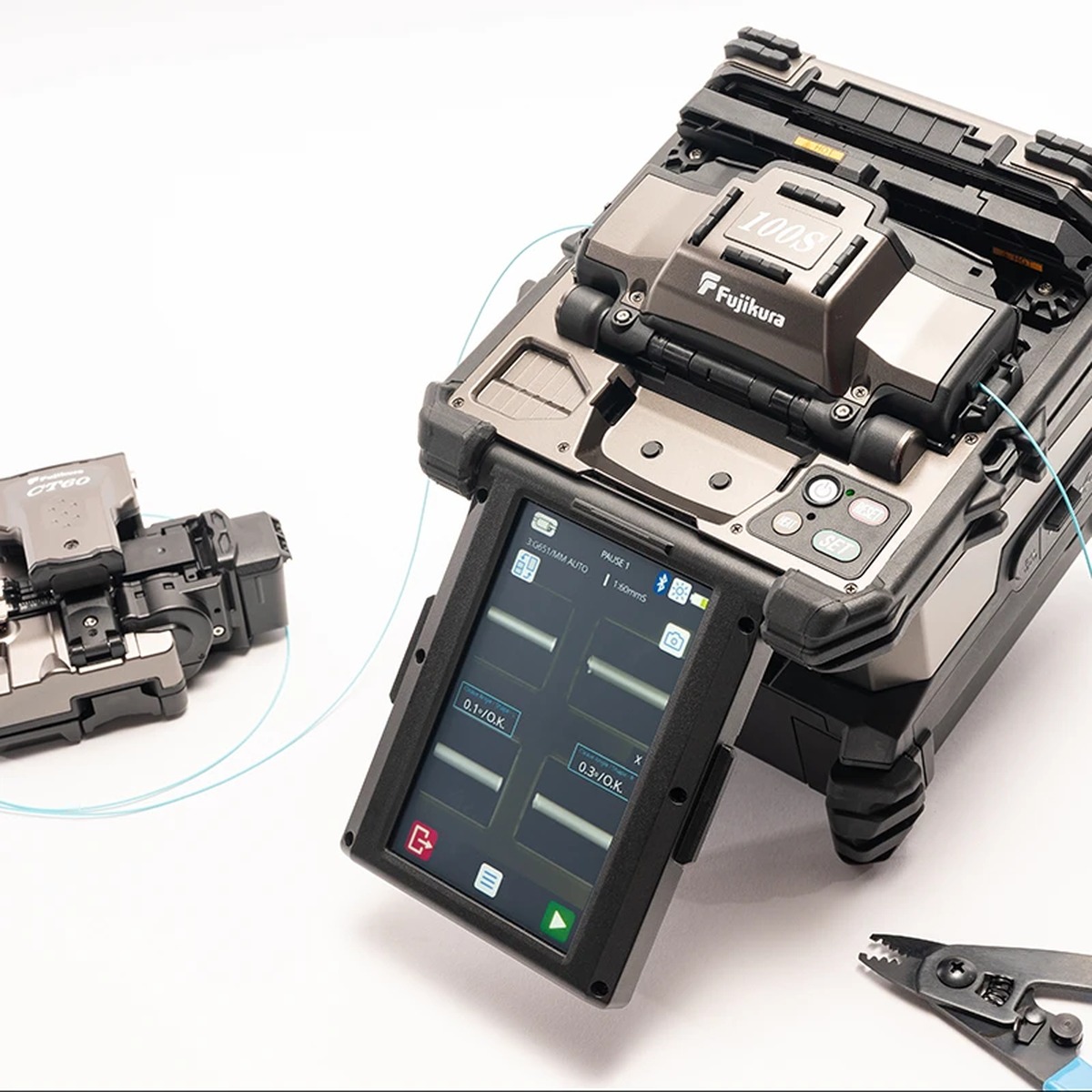

Blade life managementThe splicer works with CT60 cleavers to monitor blade wear and support automatic blade rotation decisions.

Field-ready platformRugged construction, strong illumination, and power-bank charging support mobile work.

Core Features

Simultaneous Fibre Preparation

Dual preparation workflow helps reduce handling time from stripping to cleaving and fibre setting.

Active Fusion Control

Analyses cleave end faces and fibre brightness during splicing to improve consistency and reduce rework.

Active Blade Management

Works with CT60 cleavers to track blade wear, display remaining blade life, and support blade position changes.

Customisable Automation

Wind protector and sheath clamp opening or closing behavior can be tuned to fit user workflow preference.

Improved Usability

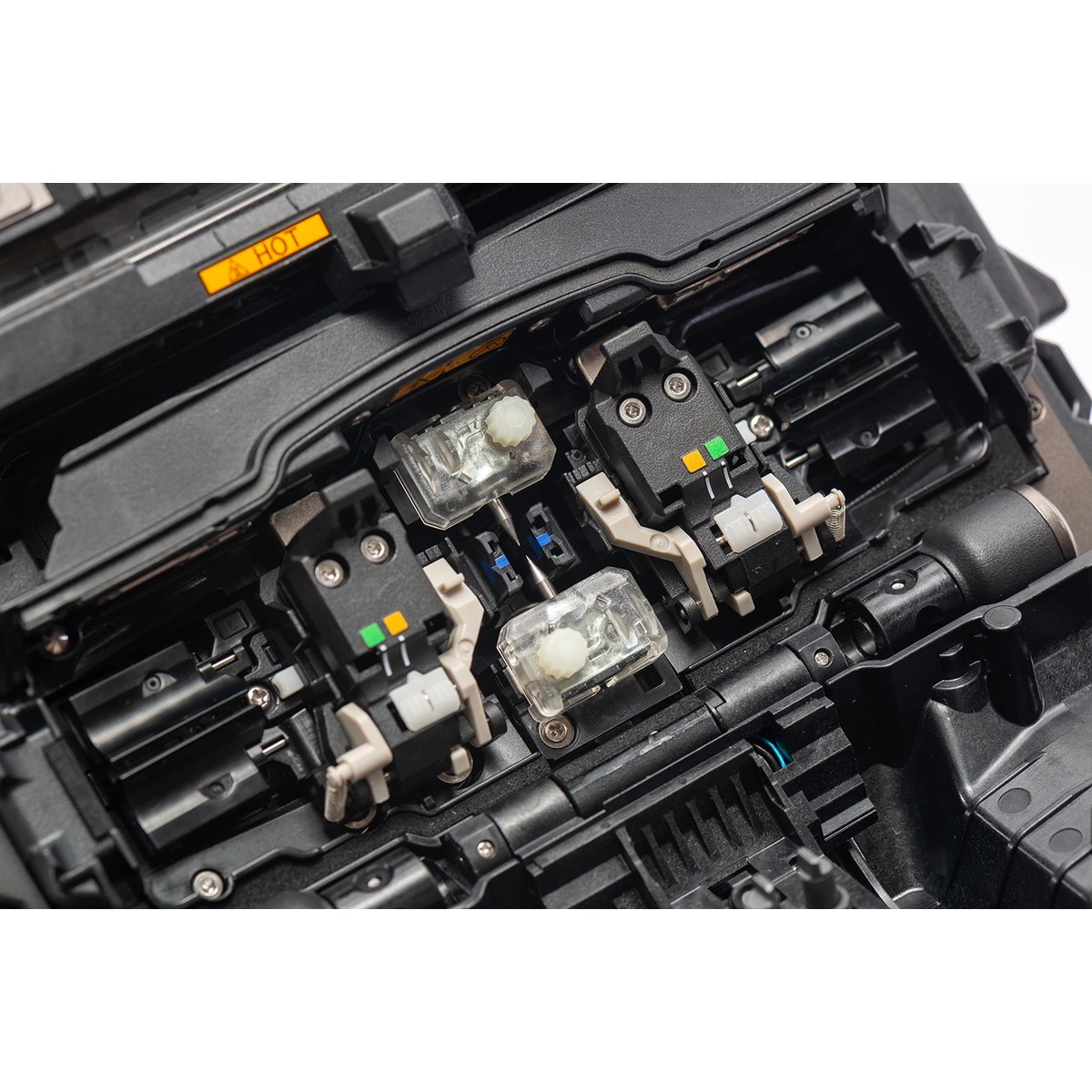

Integrated lighting and screwdriver-free electrode assembly replacement simplify daily field use.

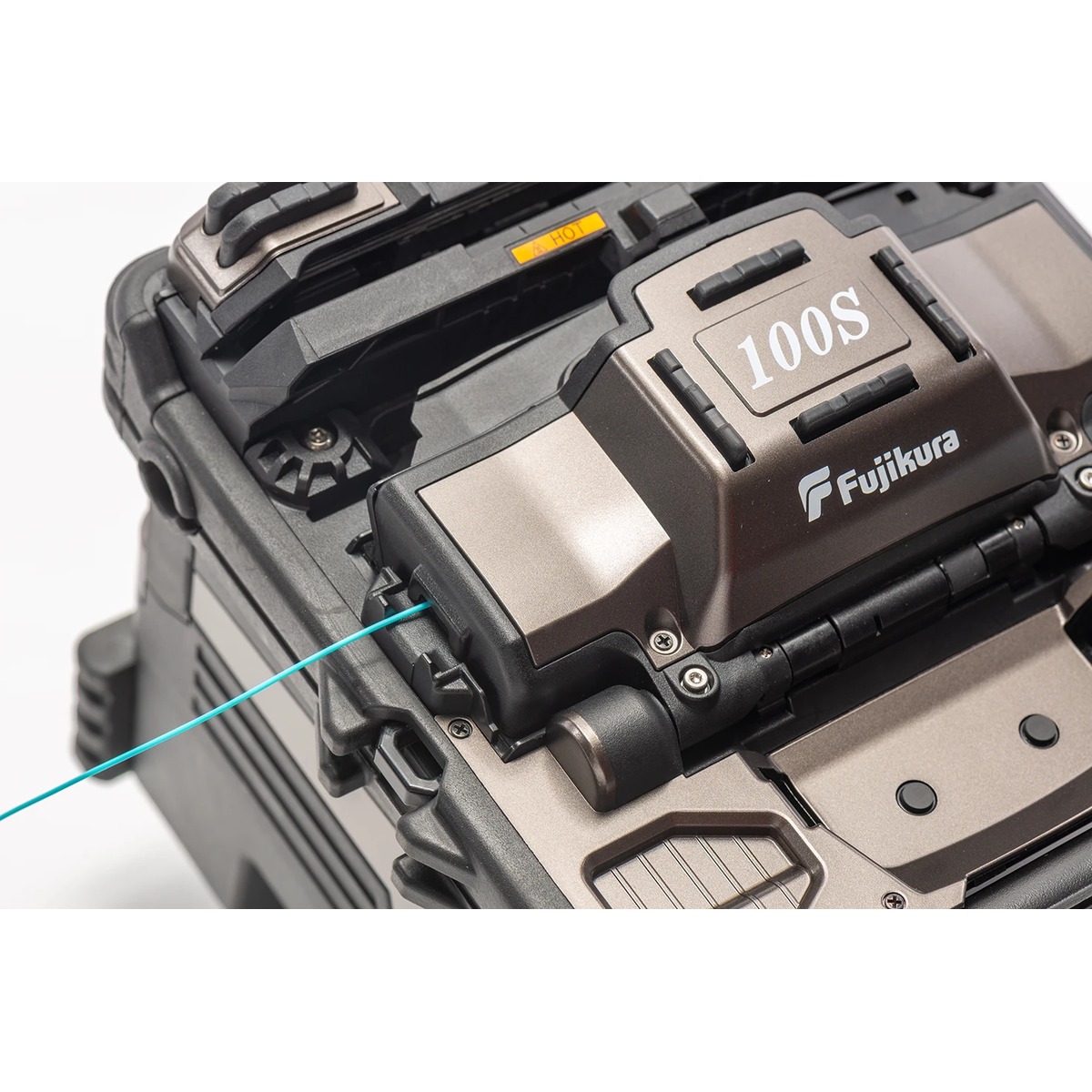

Rugged Construction

Precision-machined metal and thermoplastic housing with six-side bumper protection for demanding sites.

Technical Specifications

Splicing & Fibre

Alignment Method	Active core alignment
Spliceable Fibre Count	Single-fibre
Fibre Type	Single-mode and multi-mode optical fibre
Cladding Diameter	80μm - 150μm
Sheath Clamp Coating	3000μm maximum coating diameter
Sheath Clamp Cleave Length	5mm - 16mm
Fibre Holder Cleave Length	Approx. 10mm
ITU-T G.652 Splice Loss	Avg. 0.02dB
ITU-T G.651 Splice Loss	Avg. 0.01dB
ITU-T G.653 Splice Loss	Avg. 0.04dB
ITU-T G.654 Splice Loss	Avg. 0.04dB
ITU-T G.655 Splice Loss	Avg. 0.04dB
ITU-T G.657 Splice Loss	Avg. 0.02dB
SM Fast Mode Splice Time	Avg. 7 to 9 seconds
SM Auto Mode Splice Time	Avg. 11 to 13 seconds
Auto Mode Splice Time	Avg. 14 to 16 seconds
Fibre Tensile Test Force	Approx. 2.0N
Special Splice	Attenuation splice

Heating, Power & System

Protection Sleeve Type	Heat-shrinkable sleeve
Sleeve Length	Max. 66mm
Sleeve Diameter	Max. 6mm before shrinking
60mm Slim Mode Heat Time	Avg. 8 to 10 seconds
60mm Mode Heat Time	Avg. 13 to 15 seconds
Electrode Life	Approx. 5,000 splices
Dimensions	155mm (W) × 176mm (D) × 171mm (H)
Weight	Approx. 2.8kg including battery
Operating Temperature	-10°C to 50°C
Storage Temperature	-40°C to 80°C
Humidity	0 to 95% RH non-condensing
Operating Altitude	Max. 5000m
AC Adaptor Input	AC100 to 240V, 50/60Hz, Max. 1.5A
AC Adaptor Output	Approx. DC12V, Max. 7A
DC Adaptor Input	DC10 to 15V, Max. 7A
Battery Type	Rechargeable lithium-ion
Battery Output	Approx. DC14.4V, 6,380mAh
Battery Capacity	Approx. 300 splice and heat cycles
Battery Recharge Time	4 to 6 hours from empty
Battery Life	Approx. 500 recharge cycles
Display	4.95-inch TFT colour touch screen
Display Magnification	Maximum approx. 320x
V-Groove Illumination	LED lamp
PC Interface	USB-C (with power delivery)
External LED Lamp Interface	USB 2.0 A connector, Approx. DC5V, 500mA
Ribbon Stripper Interface	Mini DIN 6-pin, DC12V, Max. 1A
Wireless Connectivity	Bluetooth® 5.2 LE
Splice Mode Storage	100 splice modes
Heat Mode Storage	30 heat modes
Splice Result Storage	20,000 splices
Splice Image Storage	100 images
Tripod Screw Hole	1/4-20UNC
GPS	Record splice location in the splicer

Notes & Application Guidance

80μm cladding fibre use requires the matching cleaver and fibre holder combination specified by Fujikura.
Average splice loss, splice time, and heat time vary with environmental conditions, fibre type, sleeve type, and battery condition.
Battery cycle figures are based on Fujikura test conditions and room-temperature operation.
Bluetooth® is used for wireless connectivity, including interaction with supported accessories such as CT60 cleavers.
Official specification source: Fujikura Europe 100S product page. For purchase confirmation or latest package details, verify against current supplier quote or datasheet.
