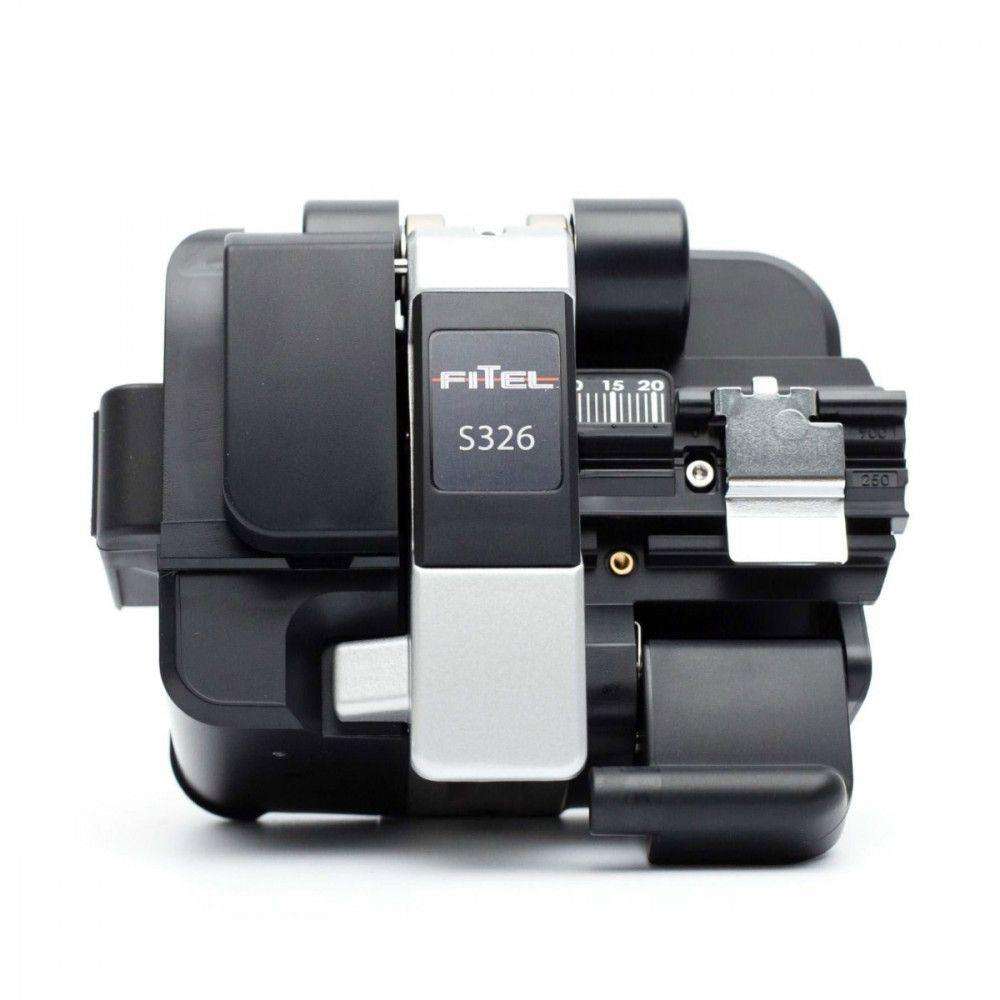

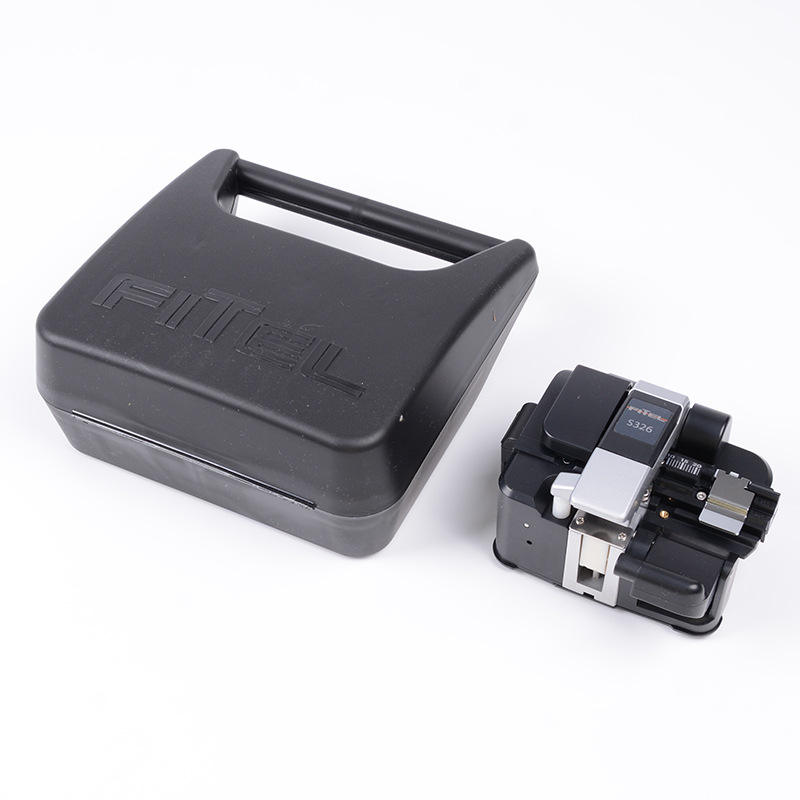

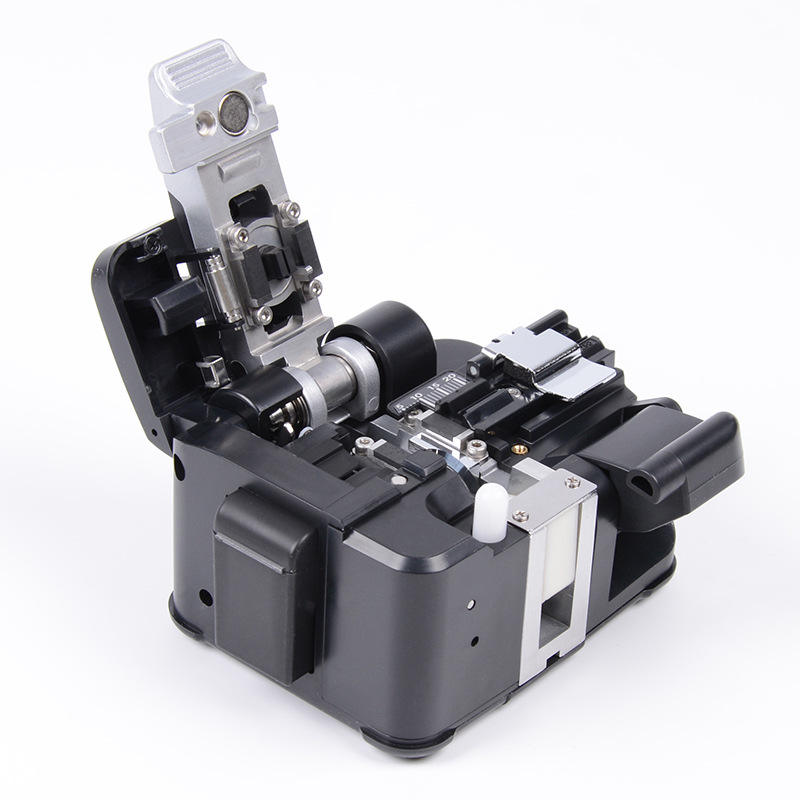

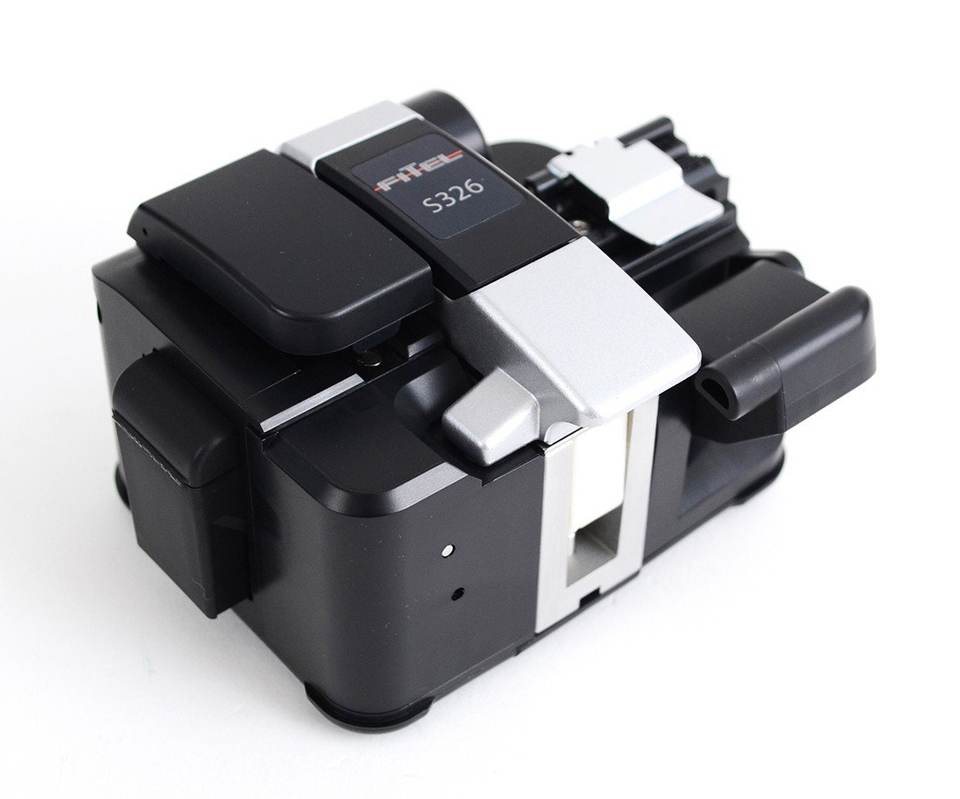

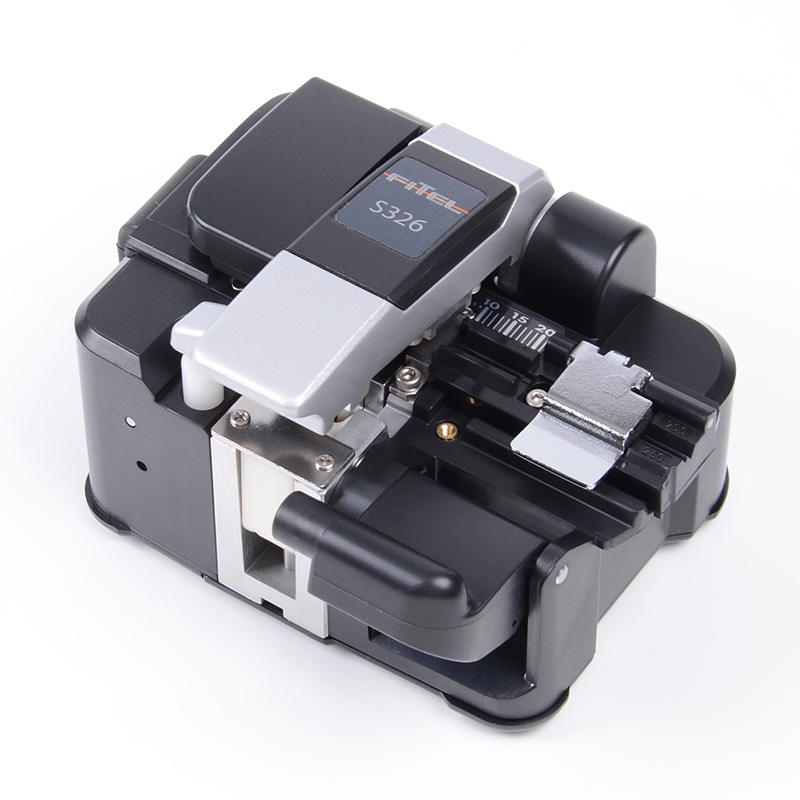

S326 High Precision Fiber Cleaver

The Fitel S326 is a high-precision fiber cleaver from Furukawa Electric, designed for reliable cutting performance in professional fiber optic installations. Featuring automatic blade rotation and adjustable cleave length (5-20mm), it delivers consistent ≤.5° cleave angles for optimal splice performance. Compatible with 250μm and 900μm coated fibers.

Brand	Fitel (Furukawa Electric)
Model	S326
Applicable Fiber	Single-mode / Multi-mode Quartz Fiber
Cladding Diameter	125μm
Coating Diameter	250μm ~ 900μm
Cleave Length	5~20mm (Adjustable)
Cleave Angle	≤0.5°
Blade Life	~60,000 cuts
Dimensions	65 × 75 × 55 mm
Weight	~210g

Request Quote Contact Sales

Datasheet User Manual Video Guide

Key Features

High Precision Cutting

Delivers consistent ≤.5° cleave angles for optimal splice performance and minimal insertion loss.

Auto Blade Rotation

Automatic blade rotation function extends blade life up to 60,000 cuts, reducing maintenance costs.

Portable Design

Lightweight at only 210g, compact size (65×75×55mm) perfect for field FTTH installation work.

Adjustable Length

Cleave length adjustable from 5-20mm to accommodate various fusion splicer requirements.

Wide Compatibility

Compatible with both 250μm and 900μm coated single-mode and multi-mode fibers.

Perfect Match

Designed to work seamlessly with Fitel fusion splicers for best splice results.

Frequently Asked Questions

What is the blade life of the S326

The Fitel S326 fiber cleaver has a blade life of approximately 60,000 cuts. The automatic blade rotation feature helps distribute wear evenly across the blade surface, maximizing its lifespan.

Is the S326 compatible with all fiber types

Yes, the S326 is compatible with both single-mode and multi-mode quartz fibers with cladding diameter of 125μm and coating diameters of 250μm or 900μm.

What cleave angle can the S326 achieve

The S326 delivers consistent cleave angles of ≤.5°, which is essential for achieving low-loss fiber splices when used with fusion splicers.

Is the S326 suitable for field work

Absolutely. The S326 is specifically designed for field use with its compact size (65×75×55mm) and lightweight design (210g), making it ideal for FTTH installation and maintenance work.
