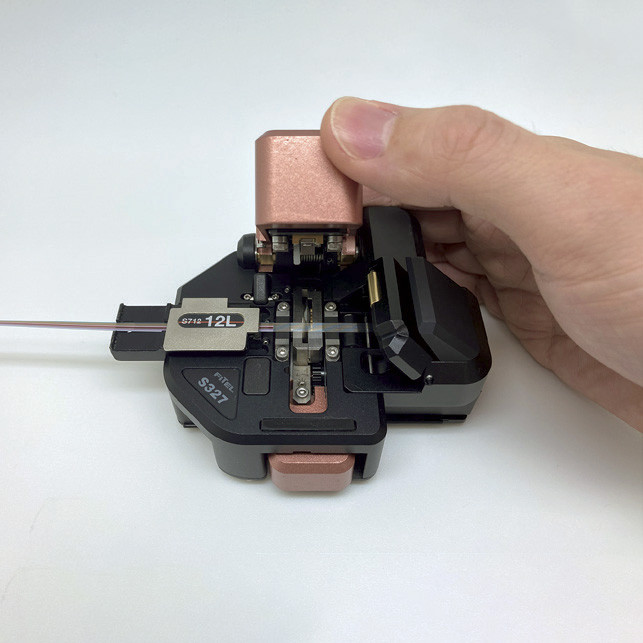

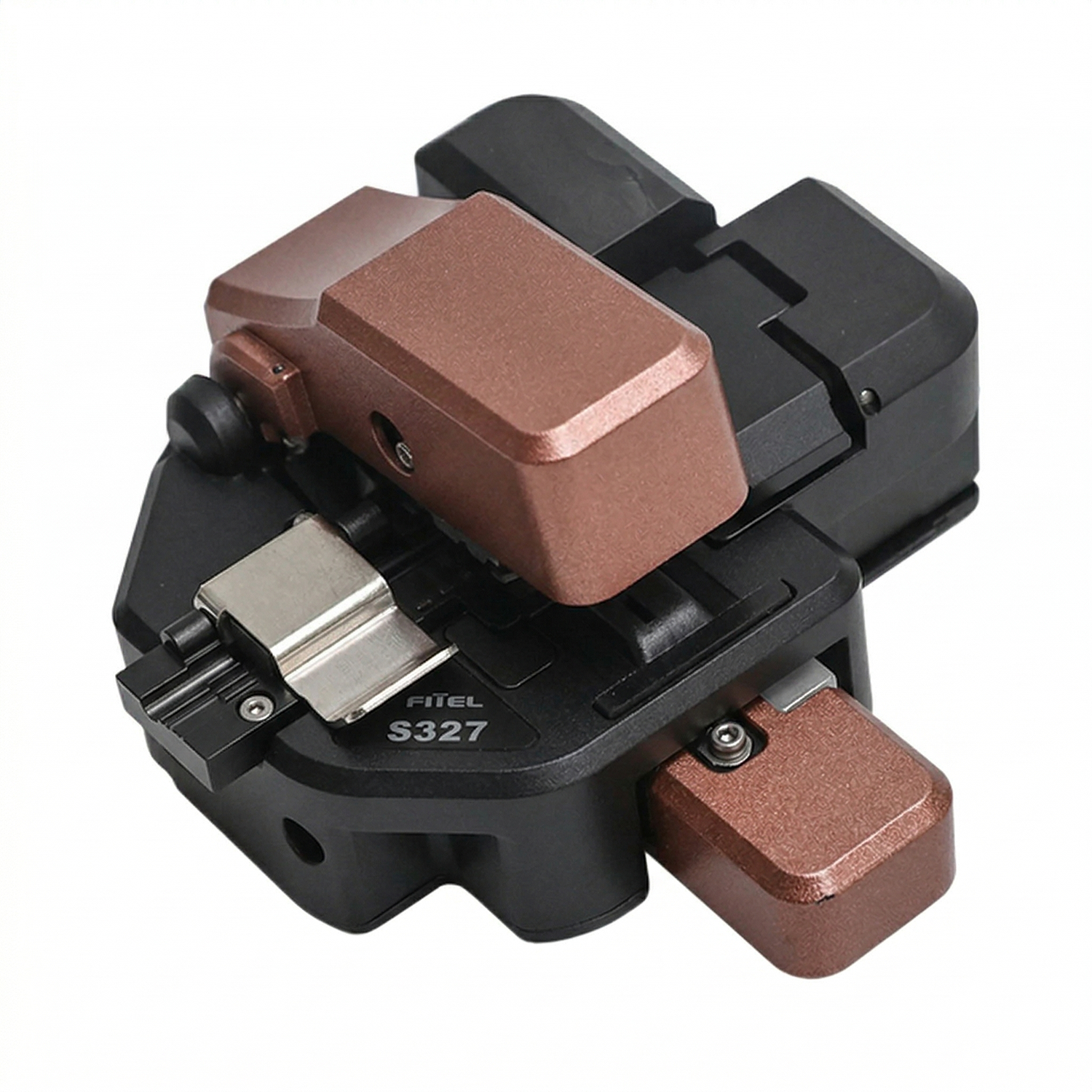

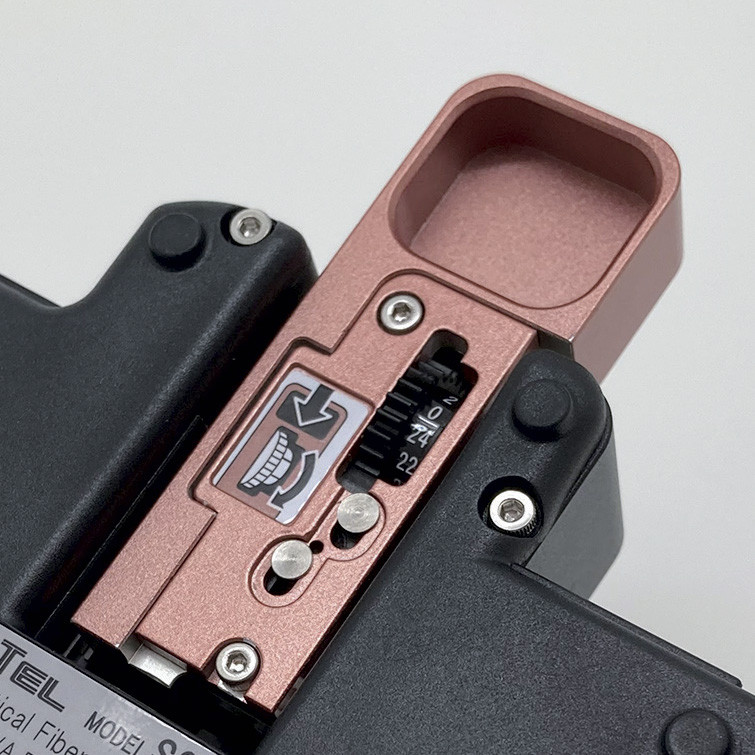

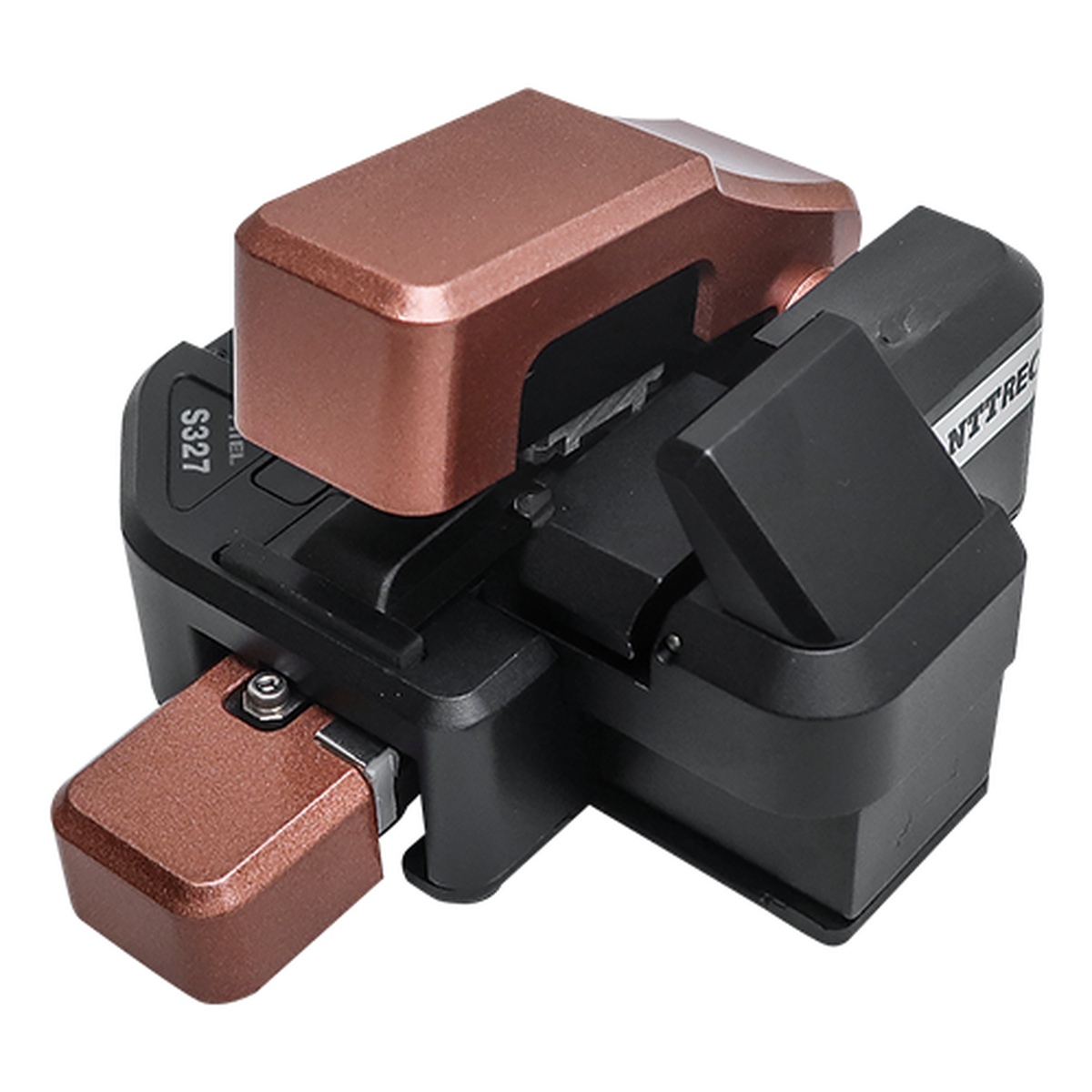

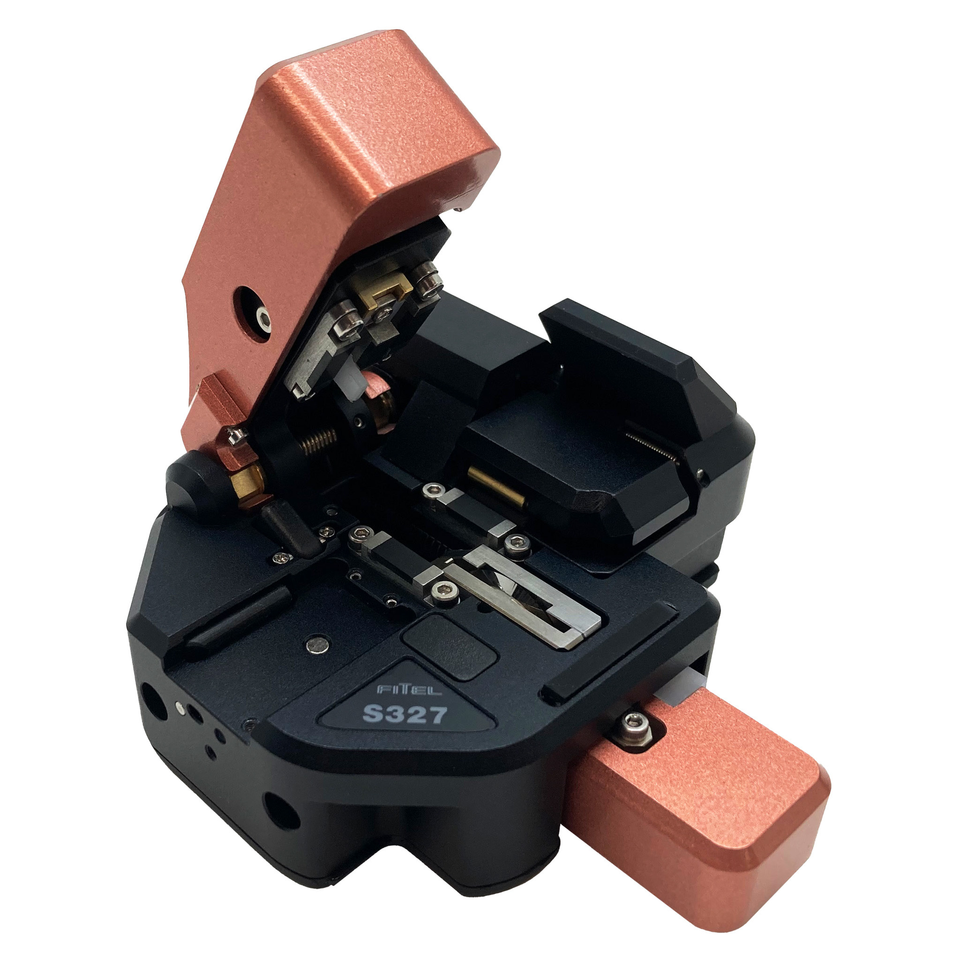

FitelS327 High Precision Fiber Cleaver
The FITEL S327 high precision optical fiber cleaver is designed for telecoms and production applications, with support for both single fibre and ribbon fibre workflows. Based on the specification page you provided, it supports up to 12-fiber ribbon at 250µm pitch and 2–16-fiber ribbon at 200µm pitch, provides 65,000 fiber cleaves blade life, and can be used in handheld or desktop mode with automatic waste collection.
| Brand | FITEL / Furukawa Electric |
| Model | S327 |
| Applicable Fiber | Silica |
| Fiber Count | Single fiber; Ribbon fiber 250µm: 2–12 fiber ribbon; 200µm: 2–16 fiber ribbon |
| Clad Diameter | 125 µm |
| Coating Diameter | Single fiber: 0.20–3.0 mm; Ribbon fiber: 0.20–0.40 mm × 0.25 mm pitch / 0.20–0.40 mm × 0.20 mm pitch |
| Cleave Length | Single fiber: 3 mm~*1; Tape: 10 mm~ |
| Cutting Blade Life | 65,000 fiber (2,500 fiber per cutting blade position)*2 |
| Dimension | 88W × 93D × 54H mm (close for carrying) |
| Weight | 320 g |
| Operation Mode | Handheld or desktop |
| Waste Collection | Fiber ends automatically collected in waste bin |
*1 Cutting lengths of more than 3 mm but less than 5 mm are only available with a coating diameter of 0.25 mm or less. *2 Cutting blade life depends on operating environment and condition. The number can vary and is not guaranteed. 0.20 mm pitch ribbon fibre decreases the number of cleaves.
Standard Package
| Item | P/N / Quantity |
| S327 Main Body | S327A-01 / 1 |
| Waste Bin | S327X-12 / 1 |
| Hexagonal Wrench | S327X-16 / 2 |
| Carrying Case | S327X-17 / 1 |
| Single Fiber Adapter*3 | S327X-18 / 1 |
| Operating Instructions | FTS-B616 / 1 |
*3 Single Fiber Adaptor scales 5~16 mm
Optional Components
| Item | P/N / SPQ |
| Waste Bin | S327X-12 / 1 |
| Carrying Case | S327X-17 / 3 |
| Single Fiber Adapter*3 | S327X-18 / 1 |
| Blade Exchange Set*4 | S327X-24 / 1 |
*3 Single Fiber Adaptor scales 5~16 mm. *4 If parts other than blade, such as the rubber pad, are worn out, replacing blade alone may not restore the initial performance.
